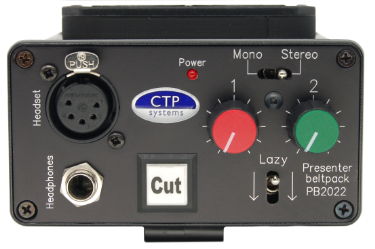

CTP PB2022
presenter mic amp/lazy/listen. Supersedes PB2020
Unit of Measure Name:
Units
Internal Reference:
PB2022
The PB2022 is a battery operated unit designed to provide all audio systems normally required for a remote presenter. The unit is an update of our popular PB2020 presenter unit. The PB2022 incorporates a high quality, low noise microphone amplifier with 48 volt phantom power available and switchable.
Mic amp gain may be selected in 5dB steps from 15dB to 70dB gain. On keying the front panel 'lazy' key, the presenter's microphone will be silently diverted from programme sound to the unit's 'lazy talkback' output.
Two features are programmable, the Mic cut switch may be selected to latching or momentary operation and the lazy switch can be selected to illuminate the mic cut switch when operated.
Two XLR headphone/earpiece inputs are provided and may be switched to individual or both earpieces. The headphone socket will operate with either 'A' or 'B' gauge jack plugs.
Headset support on 5 pin XLR.
The unit has a belt clip which may be removed if required.
The PB2022 is powered by 2 * PP3 size batteries. When switched on, the power LED will illuminate and when there is approximately one hour's life left in the batteries the power LED will start to flash. When the batteries are dead - no light!
Battery life 12 hours+ using alkaline batteries without phantom. Less with! (depends on microphone in use).
Dimensions:
144mm high, 105mm wide, 65mm deep.
