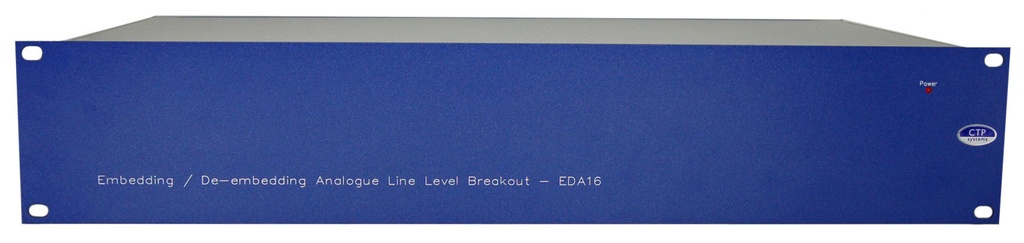

This Unit embeds and de-embeds eight SDI audio channels in each direction.

The EDA16 has eight balanced analogue audio inputs which may be embedded to groups 1 and 2 (channels 1-8) or groups 3 and 4 (channels 9-16). It has eight balanced analogue audio outputs which may be de-embedded from groups 1 and 2 (channels 1-8) or groups 3 and 4 (channels 9-16).

The EDA16 is suitable for use with SD-SDI, HD-SDI or 3G-SDI with automatic switching.

Dimensions: 2RU rackmount 150mm deep.
